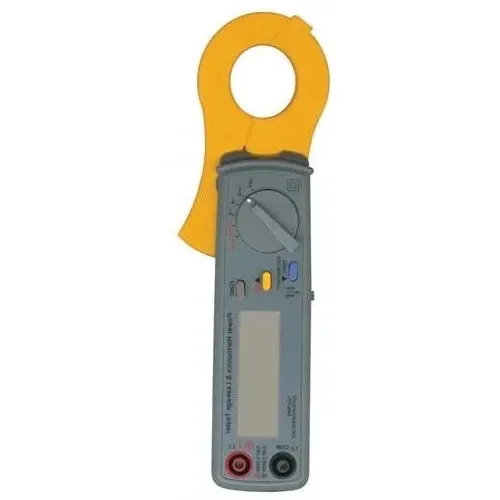

The Meco PLH 5760 is a sophisticated AC Clamp-On meter designed for measuring power, harmonics, and leakage current with True RMS accuracy. It is an ideal tool for professionals dealing with power quality analysis, electrical maintenance, and leakage detection in various systems. With its ability to measure both low-level leakage currents and high-power harmonics, this clamp meter ensures efficient diagnostics and troubleshooting for industrial, commercial, and residential applications.

Key Features:

• True RMS Measurement: Measures true RMS values for voltage (V) and current (A).
• Leakage Current Measurement: Provides leakage current measurements with a resolution of 10 mA.

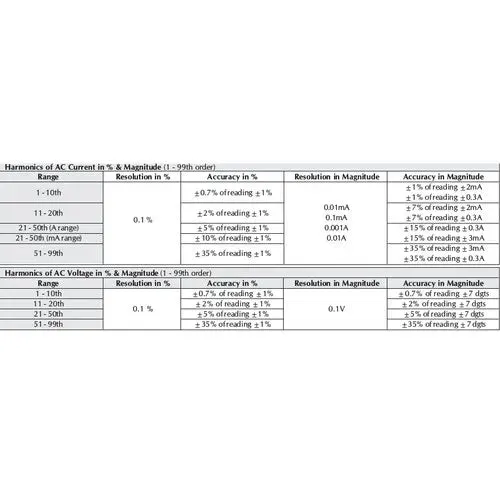

• Harmonics Analysis: Analyzes harmonics (V and A) up to the 99th order.
• High-Frequency Harmonic Analysis: Capable of analyzing harmonics up to 5/6 kHz.
• Non-Interrupted Harmonic Analysis: Allows for continuous monitoring without interruption.
• Total Harmonic Distortion (THD): Calculates %THD for effective power quality assessment.
• Crest Factor (C.F.) Analysis: Evaluates the crest factor of the measured signals.
• Fast Peak Function: Measures peak values with a response time of 33 milliseconds for 60 Hz and 39 milliseconds for 50 Hz.
• Programmable CT Ratio: Adjustable CT ratio from 1 to 250 for flexibility in measurement.
• Comprehensive Power Measurements: Displays power values in various units: W, kW, HP, VA, kVA, VAR, kVAR. Includes power factor (PF) and phase angle measurements.
• Energy Consumption Analysis: Monitors energy consumption in mWh, Wh, and kWh.
• Standby Power Consumption Analysis: Evaluates standby power usage for efficiency assessment.
• Balanced 3-Phase Power Quality: Assesses and balances power quality in 3-phase systems.
• Max., Min., & Data Hold Function: Allows users to capture and retain maximum, minimum, and current measurements.
• Active Power Measurement: Displays active power in horsepower (HP).

Specifications:

• Brand: Meco
• Model Number: PLH 5760
• Weight: Approximately 200 grams (including battery).
• Dimensions: 210 x 72 x 36 mm.
• Jaw Opening: Approximately 30 mm (for cable diameter).
• Display: 4 2 2 digit LCD for clear readings.
• Auto Power Off: Automatically turns off after 30 minutes of inactivity to conserve battery life.
• Battery Type: Uses 1.5 V SUM-3 (2 pcs).
• Resolution: 0.1 kW.
• Accuracy: ±2% ±2.5 kW for reliable measurements.

Box Includes:

• Meco PLH 5760 AC Clamp-On TRMS Power Harmonics and Leakage Tester
• Test leads
• Carrying case
• Instruction manual
• Batteries

Applications:

• Power Quality Analysis: Identifying and analyzing harmonic distortions and power quality issues in electrical systems.
• Electrical Maintenance: Troubleshooting and maintaining electrical equipment in industrial and commercial settings.
• Energy Audits: Assessing energy consumption and efficiency in facilities to identify areas for improvement.
• Industrial Maintenance: Monitoring and maintaining the performance of motors, transformers, and other electrical equipment.
• Research and Development: Conducting detailed analysis of electrical systems and components in laboratory settings.
