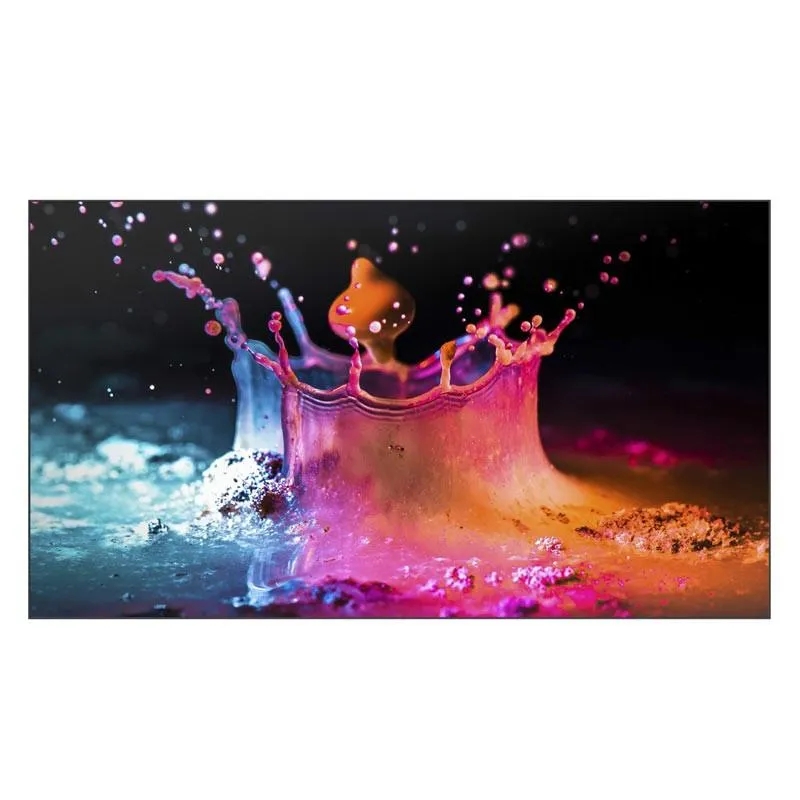

Model : LH46UDEPLBB/XS

Description :

• Create beautiful videowalls with virtually seamless tiling thanks to the ultra-thin bezel of the UD46E-P. Embedded System-on-Chip (SoC) technology allows for an all-in-one display solution without the the need for external media players. And factory calibration provides brightness and color uniformity across multiple displays right out of the box.



Features :

Ultra-Narrow 3.5mm Bezels

• The UD46E-P features incredibly thin bezels at a mere 3.5mm bezel-to-bezel. So you can create virtually seamless videowalls with elegance and sophistication.

Enhanced System-on-Chip Performance with a Quad Core CPU

• Powered by a System-on-Chip (SoC) semiconductor and quad core CPU with 8GB of storage, Samsung's SMART Signage Platform (SSP) is an open and integrated player side media platform that provides a powerful, streamlined solution to reduce TCO for digital signage deployments, through savings in hardware, installation and operating costs.

Beautiful Videowalls

• Create elaborate, stunning videowalls. And when you daisy chain multiple displays with the Display Port 1.2 digital loop-out feature, you can achieve 4K UHD (3840x2160) resolution. So you can deliver exceptional content with fine detail for a stunning, impactful experience.

Factory Calibration

• Samsung's factory calibration ColorExpert technology helps to minimize color difference across multiple displays. Factory-tuned for brightness, color temperature and gamma, you can experience color uniformity right out of the box for consistent videowall matrices.

Advanced Color Management (ACM)

• The ACM solution provides a user-friendly interface to implement customized and detailed color adjustments. Fine-tune luminance, temperature and gamma through auto calibration, manual calibration and duplication to achieve the perfect display for your business.

MagicInfo Digital Signage Software

• Create playlists, set playback schedules and publish content directly to the display with this software. Most traditional file formats are supported including RSS feed and live web pages.

Image Rotation

• Enjoy convenient content creation and management. Create your desired content on a single display and turn on Image Rotation to transform portrait orientation into horizontal, and vice versa, when you connect and split-screen multiple displays in a videowall matrix.

Magic Clone

• Save installation time for multiple displays with Magic Clone. Simply enter your display settings the first time, save the setting information to a USB or external HDD and plug in the external device to the other sets to install them equally.

Reliable 24/7 Operation

• Innovative Samsung cooling technologies on these videowall displays allow your installation to be shown with highly reliable 24/7 continuous operation, so your business can meet around the clock operating requirements.



Specifications :

Panel

• Diagonal Size : 46"
• Type : 60Hz E-LED BLU
• Resolution : 1920*1080 (Full HD)
• Pixel Pitch(mm) : 0.53025mm(H)*0.53025mm(V)
• Active Display Area(mm) : 1018.08mm*572.67mm
• Brightness(Typ.) : 700 nit
• Contrast Ratio : 3500:1
• Viewing Angle(H/V) : 178/178
• Response Time(G-to-G) : 8ms (Typ)
• Display Colors : 8 bit - 16.7M
• Color Gamut : 72%
• Haze :44%

Display

• Dynamic C/R : 10,000:1
• H-Scanning Frequency : 30 ~ 81kHZ
• V-Scanning Frequency : 48 ~ 75HZ
• Maximum Pixel Frequency : 148.5MHz

Sound

• Speaker Type : N/A

Connectivity

Input

• RGB : Analog D-SUB, DVI-D, Display Port 1.2
• Video : HDMI1,HDMI2, Component(CVBS Common)
• Audio : Stereo mini Jack
• Usb : USB 2.0 x 1

Output

• RGB : DP1.2(Loop-out)
• Video : N/A
• Audio : Stereo mini Jack
• Power Out : N/A
• External Control : RS232C(in/out), RJ45
• External Sensor : Detachable type(IR, Ambient)
• Tuner : No

Power

• Type : Internal
• Power Supply : AC 100 - 240 V~ ( /- 10 %), 50/60 Hz

Power Consumption

• Max[W/h] : 187.0
• Typical[W/h] : 135.0
• BTU(Max) : 638.0
• Sleep mode : less than 0.5W
• Off mode : less than 0.5W

Dimension (mm)

• Set : 1022.1x 576.6 x 97.4
• Package : 1160 X 715 X 280

Weight (kg)

• Set : 16.2kg
• Package : 22.4kg (TBD)

MECHANICAL SPECIFICATION

• VESA Mount (mm) : 600 * 400 (mm)
• Protection Glass : N/A
• Stand Type : N/A
• Media Player Option Type : SBB-C/DA/DI (Slide In)
• Bezel Width (mm) : 2.3mm(U/L), 1.2mm(R/B)

Operation

• Recommended Usage Hours : 24/7
• Operating Temperature : 0.0 ℃ ~ 40.0 ℃
• Humidity : 10.0 % ~ 80.0 %

Feature

• Key Features : Ultra Narrow Bezel Built-in MagicInfo Player S3, SSSP 3.0

• Special Features : ACM Support(Advanced Color Management), Magic Clone(to USB), Auto Source Switching & Recovery, Haze 44%, Temperature Sensor, RS232C/RJ45 MDC,Plug and Play (DDC2B), PIP/PBP, Video Wall(15x15(OSD)), Video Wall Daisy Chain(10x10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting MST 2x2 UHD Resolution), Smart Scheduling, Smart F/W update, Clock Battery(80hrs Clock Keeping)
  Built In MagicInfo(MagicInfo Player S3)

Internal Player

• Processor : Cortex-A9 1GHz Quad Core CPU
• On-Chip Cache Memory : L1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB
• Clock Speed : 1GHz CPU Quad
• Main Memory Interface : 1.5GB Dual 48bit DDR3-933 (1866MHz)
• Graphics : 2D & 3D Graphics Engine - Up to 1920x1080. 32bpp - Supports OpenGL ES
• Storage (FDM) : 8GB (2.65GB Occupied by O/S, 5.35GB Available)
• Multimedia : Video Decoder - MPEG-1/2, H.264/AVC (Dual) - VC-1, JPEG, PNG,VP8 Audio DSP (Decoder) - AC3 (DD), MPEG, DTS and etc.
• IO Ports : USB 2.0
• Operating System : Samsung Proprietary OS(VDLinux)

Certification

• Safety : UL (USA) : UL 60950-1 CSA (Canada) : CSA C22.2 No. 60950-1 TUV (Germany) : EN60950-1 NEMKO (Norway) : EN60950-1 KC (Korea) : K60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore) : IEC60950-1 GOST (Russia) : IEC60950-1, EN55022 SIQ (Slovenia) : IEC60950-1, EN55022 PCBC (Poland) : IEC60590-1, EN55022 NOM (Mexico) : NOM-019-SCFI-1993 IRAM (Argentina) :IEC60950-1 SASO (Saudi Arabia) : IEC60950-1

• EMC : FCC (USA) FCC Part 15, Subpart B class A CE (Europe) EN55022, EN55024 VCCI (Japan) V-3 (CISPR22) KCC (Korea) :KN22, KN24 BSMI (Taiwan) : CNS13438 (CISPR22) C-Tick (Australia) : AS/NZS3548 (CISPR22) CCC(China) :GB9254-2008, GB17625.1-2012

• Environment : N/A

Accessory

• Included : Quick Setup Guide, Warranty Card, DP cable, Power Cord, Remote Controller, Batteries,

Optional

• Stand : N/A
• Mount : WMN-46VD
• Specialty : MID-UD46DS

Media Player

• SBB(Slide In/Optional), Signage player box(Optional)
